High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles

Condition : New

Type : Filling Machine

Machinery Capacity : 2000BPH, 1000BPH

Applicable Industries : Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Food & Beverage Shops, Other

Showroom Location : None

Application : Beverage, Chemical, Food, Machinery & Hardware, Commodity, perfume, vial, test tube, vaccine

Packaging Type : Cartons, CANS, Bottles, Barrel, Bags, case, Other

Packaging Material : Plastic, Glass, Other

Automatic Grade : Automatic

Driven Type : Pneumatic

Voltage : 220/380V 50-60HZ, AC220V/380V 50HZ/60HZ

Place of Origin : Guangdong, China

Brand Name : Guanhong

Weight : 320 KG

Warranty : 1 Year

Key Selling Points : Multifunctional

Filling Material : Other, Water, Oil, Powder, Perfume, Vaccine

Filling Accuracy : ±1%

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, HMI

Filling head : 4 head

Capping head : 2 head

Labeling machine : 1 pcs

Filling accuracy : ± 1%

Production capacity : 2000BPH

Filling range : 5-1000ml (customized)

Power : 3KW

Air pressure : 0.6-0.8Mpa

Packaging Details : wooden packing

Port : Guangzhou

Supply Ability : 50 Piece/Pieces per Month

Price : $13,500.00/pieces >=1 pieces

MOQ : 1 set

Contact Now

Product Overview

High speed automatic liquid bottle 4 heads filling capping and labeling machine

This machine is a new production line for bottle filling, capping and labeling. This machine is made of stainless steel material above 304#, which is very convenient to clean, cost-effective and high production efficiency. It is the choice of filling, capping, labeling machine in daily chemical, and food industries.

1. Use bottle collecting mechanism to collect finshed bottles;
2. The bottle goes down automatically, through the PVC conveyor belt turnover mechanism into the chuck mechanism
3. Single head labeling, visual detecting the bottle labeling, and the bottle lids, with a display screen
4. Servo torque rotary capping, can add code injection or printing machine, can change other filling or capping mode, can add hydraulic seal, aluminum foil seal cutting

High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
Product Paramenters
Item
Data
Filling head
4 (can be increased according to customer' demand)
Capping head
2(can be increased according to customer' demand)
Number of labeling
1 (can be increased according to customer' demand)
Visual dectecting
1
Suitable bottle type
according to the customer's bottle sample
Cap sorter form
electromagnetic vibration (differemt bottle type need to replace the chuck)
Machine power
about 3KW
Program control
PLC + touch screen
Air pressure
0.6-0.8Mpa
Voltage
AC220V/380V 50/60HZ
Production capacity
1000-2000BPH
Details Images
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles

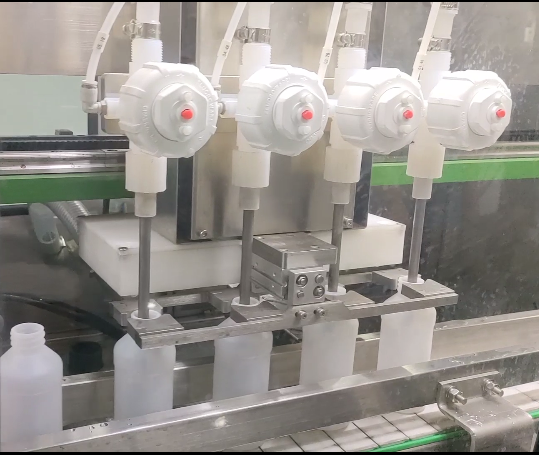

Tracking type filling heads
Different from other filling machines,the filling heads of this machine will automatically move with the bottles during
filling,rather than stopping to fill.Greatly improve efficiency.With anti-dripping function,it will fill liquid accurately

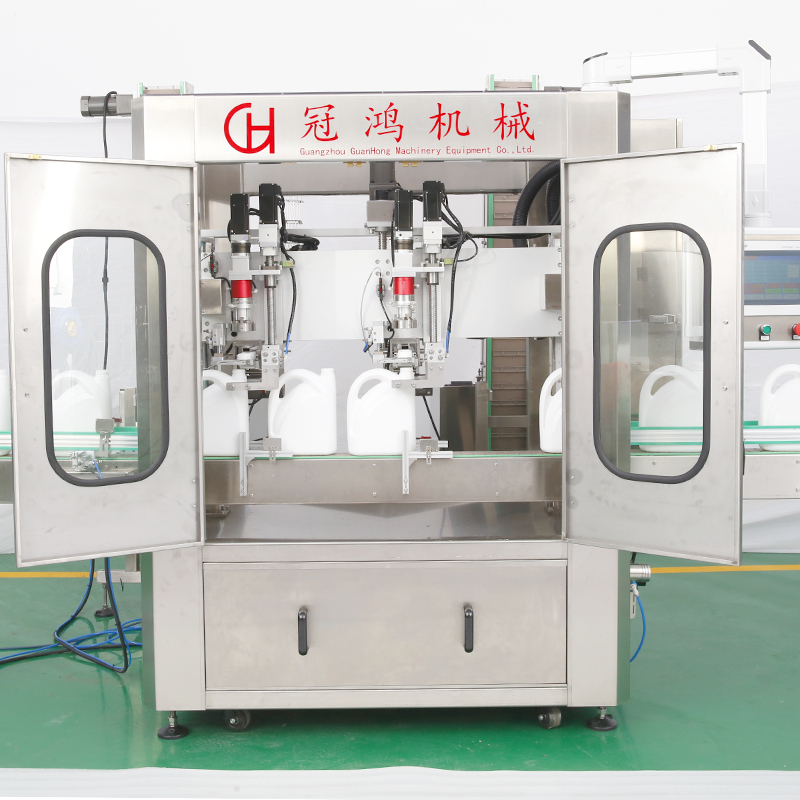

Tracking type capping machine
The latest tracking capping machine,no damage to the cap, fast speed, safety and stability, high capping efficiency.

The machine is controlled by PLC and several servo motors control the movement of the capping pro. In the process of capping, the bottle moves continuously, the capping torque is adjustable, the production speed is fast, the work is stable, the cap will not be damaged in the process of capping.

High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles

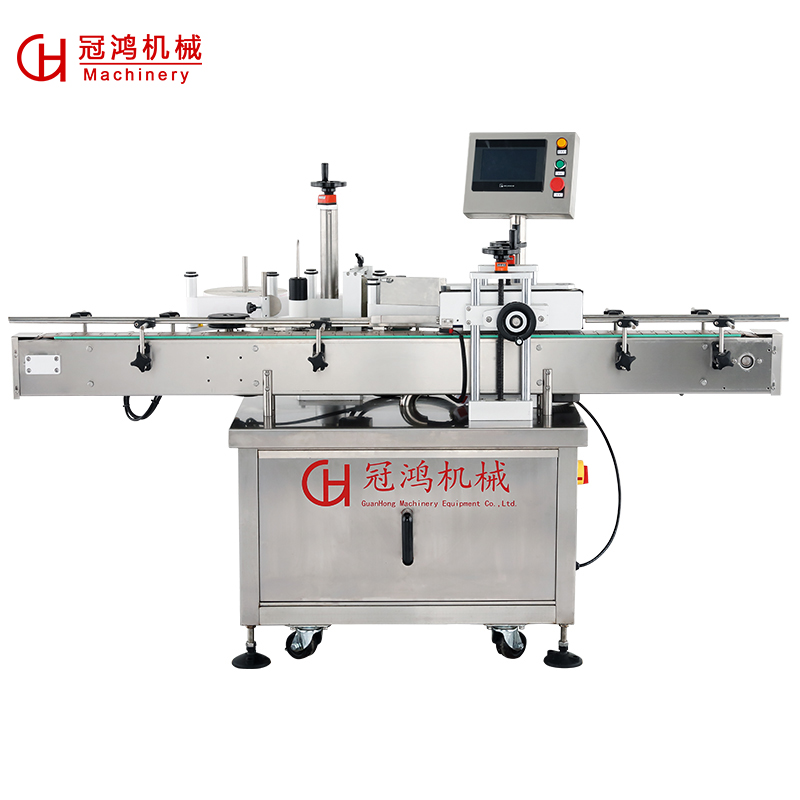

Automatic round labeling machine
Automatic vertical labeling machine is for glass bottles, plastic bottles and other cylindrical objects, tapered objects can be customized, but also according to product needs to increase the printer; the machine design is simple, light weight, beautiful. And it can be used independently or connected with other machines into production lines
Application
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
Recommend Products
Company Profile
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
Packaging & Delivery
High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before we send the machine, you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
